Aperçu du processus de laminage
La processus de formage par laminage is a continuous metal shaping technique that transforms sheet metal into customized profiles using a series of precisely positioned rollers. This process is widely used in automotive, construction, racking & shelving, and renewable energy industries due to its ability to create high-quality, consistent, and cost-effective metal profiles.
Unlike press braking or stamping, roll forming allows for high-speed production with minimal material wasteIl s'agit donc d'une solution idéale pour large-scale manufacturing. In this guide, we will explore:
✅ Comment fonctionne le profilage
✅ Types de Machines De Formage De Rouleaux
✅ Avantages du profilage
✅ Common materials used in roll forming
✅ Industry applications
Let’s dive into the details!
How Does the Roll Forming Process Work?

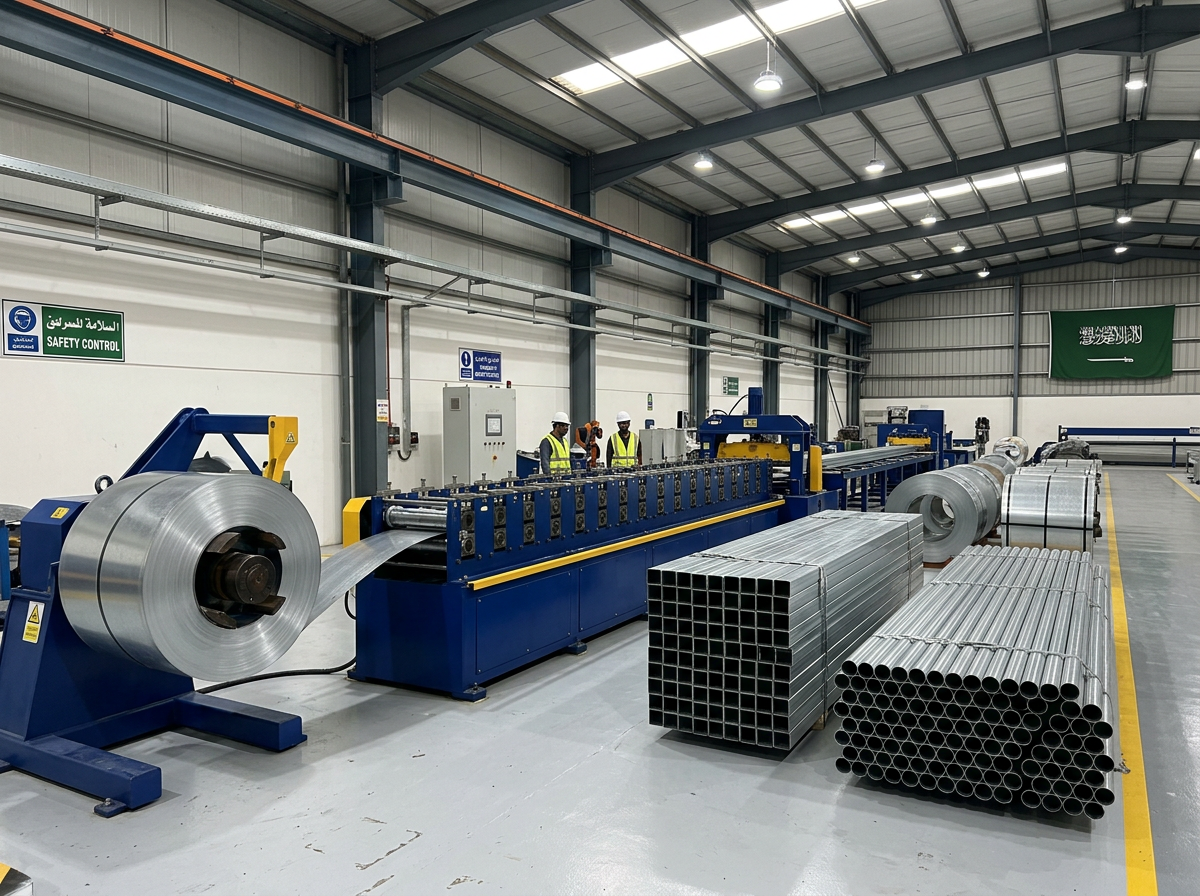

The roll forming process involves continuously feeding a metal strip through a series of rollers, which gradually shape it into the final desired profile.
Step-by-Step Breakdown of the Roll Forming Process
| Étape | Description |
|---|---|
| 1. Chargement de la bobine | Une bobine métallique est placée sur le décolleur, feeding the material into the machine. |
| 2. Leveling & Guiding | The metal strip passes through a leveling unit, ensuring uniform thickness and alignment. |
| 3. Roll Forming Stages | The material moves through plusieurs stations de rouleaux, gradually forming the desired profile. |
| 4. Cutting & Punching | UN cutting mechanism (hydraulic or servo-driven) trims the formed profile to the required length. |
| 5. Product Collection | The finished product exits the machine and is collected for further processing or shipment. |
👉 Did you know? Roll forming machines can operate at speeds of 10-100 meters per minute, making them significantly faster than other metal forming methods!
Types de machines de formage de rouleaux
Différents secteurs d'activité requièrent various roll forming machines based on profile complexity, material type, and production volume.
| Type de machine | Caractéristiques | Meilleur pour |
|---|---|---|
| Ligne de profilage à profil unique | Designed to form one specific profile | Roofing sheets, wall panels |
| Profileuse multi-profils | Capable of adjusting to produce different profiles | Racking & shelving, automotive parts |
| Machine de formage de rouleaux à commande numérique | Computer-controlled for high precision | Complex and customized profiles |
| Machine portable de formage de rouleaux | Compact and mobile | On-site construction work |
| Machine de formage de rouleaux à grande vitesse | Operates at high production speeds | Fabrication à grande échelle |
WUXI SUNWAY MACHINERY CO., LTD specializes in machines de formage de rouleaux personnalisées conçu pour various industrial applications, en veillant à ce que high precision, durability, and efficiency.
Advantages of the Roll Forming Process
Why is roll forming the preferred method for metal profile manufacturing? Let’s break it down:
Key Benefits of Roll Forming
| Avantage | Explication |
|---|---|
| Haute efficacité | Continuous production allows for faster output than stamping or press braking. |
| Rentable | Reduces material waste and labor costs. |
| Précision et cohérence | Ensures uniform dimensions across all produced parts. |
| Minimal Material Stress | Unlike press braking, roll forming applies gradual shaping, preventing cracks. |
| Automation-Friendly | Can be integrated with CNC and AI monitoring for improved precision. |
| Applications polyvalentes | Suitable for a wide range of industries, including construction, automotive, and renewable energy. |
👉 Compared to traditional metal forming, roll forming provides up to 30% higher efficiency and cost savings!
Best Materials for Roll Forming
The type of metal used in roll forming depends on the industry application and required profile strength.
Most Common Materials Used in Roll Forming
| Matériau | Propriétés | Applications courantes |
|---|---|---|
| Acier galvanisé | Résistant à la corrosion, durable | Roofing, wall panels, HVAC ducts |
| Acier inoxydable | High strength, rust-resistant | Automotive, medical equipment |
| Aluminium | Lightweight, flexible, corrosion-resistant | Solar mounting brackets, window frames |
| Cuivre | Excellent conductivity, aesthetic appeal | Electrical components, decorative trims |
| Cold Rolled Steel (CRS) | Smooth finish, strong | Industrial shelving, construction beams |
Machine Sunway fournit solutions de profilage sur mesure for specialized materials like solar mounting brackets, which require haute précision et durabilité.
Industries Using Roll Forming Technology
Roll forming is used across various industries due to its ability to produce complex profiles efficiently.
Key Industries Benefiting from Roll Forming
| L'industrie | Application | Exemples de produits |
|---|---|---|
| La construction | Roofing, wall panels | Metal cladding, C & Z purlins |
| Automobile | Composants structurels | Chassis parts, door beams |
| Rayonnage et rayonnage | Storage solutions | Warehouse racks, supermarket shelves |
| Énergies renouvelables | Systèmes de montage de panneaux solaires | Supports de montage PV |
| CVC | Air duct systems | Ventilation ducts, support channels |
Machine Sunway specializes in roll forming machines for racking & shelving, solar energy, and steel structures, en veillant à ce que haute précision et durabilité.
Common Problems & Solutions in the Roll Forming Process
Even with high-quality machines, roll forming can face technical challenges. Here’s how to solve them:
| Enjeu | Cause | Solution |
|---|---|---|
| Distorsion du profil | Rouleaux mal alignés | Adjust roller settings |
| Inconsistent cuts | Dull cutting blades | Replace or sharpen blades |
| Material slippage | Poor grip on material | Increase roller pressure |
| Vibrations de la machine | Loose components | Tighten bolts and check stability |
👉 Regular machine maintenance is the key to avoiding production delays and ensuring long-term machine performance.
Roll Forming Automation: The Future of Metal Fabrication
Alors que les industries s'orientent vers Industrie 4.0, automation in roll forming machines is enhancing efficiency, precision, and cost savings. Modern roll forming lines integrate CNC controls, AI monitoring, and real-time data analytics for optimized production.
Principaux avantages des profileuses automatisées
| Fonctionnalité | Bénéfice |
|---|---|
| CNC Control Systems | Ensures precise measurements and reduces human error |
| AI-Based Quality Inspection | Detects defects in real-time, minimizing waste |
| IoT et surveillance à distance | Allows operators to monitor machine performance from anywhere |
| Automated Changeover | Réduit les temps d'arrêt lors du passage d'un profil à l'autre |
| Efficacité énergétique | Optimized power consumption lowers operational costs |
👉 Automation reduces production costs by up to 30% while improving product consistency!
Machine Sunway offres machines de profilage entièrement automatisées, designed for smart manufacturing and Industry 4.0 compliance.
Buying a Roll Forming Machine: What to Consider?
Purchasing a roll forming machine is a major investment. Here’s a step-by-step guide to choosing the right machine for your business.
Checklist for Buying a Roll Forming Machine
| Facteur | Importance |
|---|---|
| Volume de production | Choose a machine that meets your output needs |
| Type de matériau | Ensure the machine can handle the required metal thickness |
| Complexité du profil | Simple vs. multi-profile machines |
| Niveau d'automatisation | CNC and AI integration for high efficiency |
| Budget et retour sur investissement | Consider long-term savings from reduced waste and labor costs |
| Réputation du fabricant | Work with a trusted brand like Machine Sunway |
Conseil : Investir dans un high-quality machine now will save you money on maintenance and downtime in the future.
Roll Forming vs. Stamping: Which is Better?
Les deux roll forming and stamping are widely used in metal fabrication, but they serve different purposes.
Comparison Between Roll Forming and Stamping
| Fonctionnalité | Forme rouleau | Estampillage |
|---|---|---|
| Vitesse de production | High-speed continuous process | Slower, batch-based operation |
| Déchets matériels | Un minimum de déchets | More material scrap |
| Temps de préparation | Longer initial setup, but fast production | Shorter setup, but slower production |
| Meilleur pour | Long, continuous profiles | Complex, short-length parts |
Verdict : If you need continuous, high-volume production with minimal waste, roll forming is the ideal choice.
Future Trends in the Roll Forming Industry
The roll forming industry is evolving rapidly, incorporating new technologies to improve efficiency and sustainability.
1. AI & Predictive Maintenance
- AI sensors detect wear and tear before breakdowns occur.
- Predictive maintenance reduces downtime and repair costs.
2. Eco-Friendly Manufacturing
- Energy-efficient roll forming machines reduce carbon footprints.
- Matériaux recyclables are becoming standard in production.
3. Smart Factories & IoT Integration
- Machines can communicate with each other for optimized workflow.
- Remote monitoring and control improve efficiency.
By staying ahead of these trends, businesses can remain competitive and profitable.
FAQ: Roll Forming Process & Machines
1. How long does it take to set up a roll forming machine?
Setup time varies, but with quick-change tooling, it can take as little as 30 minutes.
2. Can roll forming machines be customized?
Oui ! Machine Sunway offres machines de formage de rouleaux sur mesure tailored to specific profiles and materials.
3. What industries benefit most from roll forming?
Industries like construction, automotive, racking & shelving, and renewable energy rely heavily on roll forming for cost-effective, high-precision metal profiles.
4. How does roll forming compare to extrusion?
✅ Forme rouleau est le meilleur pour thin sheet metal et continuous profiles.
✅ Extrusion is ideal for thicker materials comme aluminum and plastic.
5. Où puis-je acheter une profileuse de haute qualité ?
Pour top-tier roll forming machines, visiter WUXI SUNWAY MACHINERY CO., LTD.
Réflexions finales
La processus de formage par laminage is the future of high-speed, cost-effective metal fabrication. Whether you’re in construction, automotive, or renewable energy, roll forming ensures precision, efficiency, and minimal waste.
WUXI SUNWAY MACHINERY CO., LTD est un leading manufacturer of roll forming machines, offering customized solutions, expert support, and competitive pricing.
Want to optimize your production? Contactez-nous dès aujourd'hui !
