لمحة عامة
أ آلة تشكيل المدادة C is specialized equipment used to produce مدادات فولاذية على شكل C that are widely used in steel structures, roofing, wall framing, and industrial buildings. توفر هذه الماكينات high-speed, precision manufacturing مع minimal material wasteمما يجعلها ضرورية لـ construction and infrastructure projects.
الميزات الرئيسية
✅ Fully automatic operation – PLC-controlled systems for high precision.
✅ Customizable profiles – Adjustable rollers to produce various C purlin sizes.
✅ إنتاج عالي السرعة – Capable of producing 10-30 meters per minute.
✅ Durable construction – Uses hardened tool steel rollers لطول العمر
✅ Hydraulic punching & cutting - يضمن precise hole placement and clean cuts.
In this guide, we’ll cover:
✅ Types of C purlin roll forming machines
✅ كيفية عمل عملية التشكيل بالدرفلة
✅ Best materials for C purlins
✅ Cost analysis & pricing guide
✅ Top manufacturers & why Sunway Machine is a trusted choice
Let’s dive in!
الأنواع
There are multiple types of ماكينات تشكيل المدادة C, each designed for different production needs and automation levels.
1. Manual C Purlin Roll Forming Machine
- Requires manual adjustments to change purlin sizes.
- Suitable for small-scale production.
2. Semi-Automatic C Purlin Roll Forming Machine
- Uses a نظام التحكم PLC for improved accuracy.
- Requires manual profile changes but offers faster production.
3. Fully Automatic C Purlin Roll Forming Machine
- سمات CNC automation لـ quick profile adjustments.
- مثالية لـ high-volume production with minimal downtime.
4. Quick Change C Purlin Roll Forming Machine
- Advanced design allows for fast profile switching without manual intervention.
- Perfect for factories producing multiple purlin sizes.
ماكينة صنواي العروض customized C purlin roll forming machines مع quick-change technology.

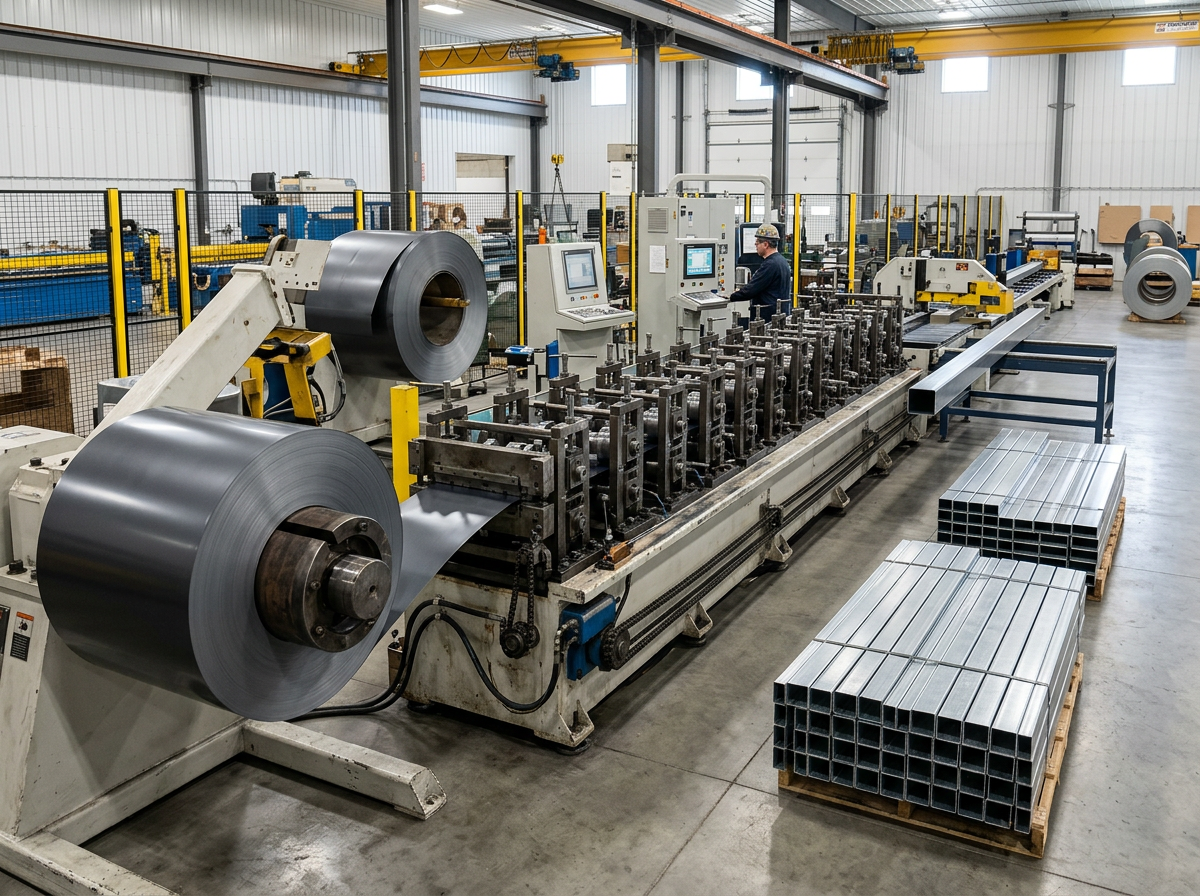

How C Purlin Roll Forming Works
ال roll forming process for C purlins involves progressive shaping of a flat steel strip into a C-shaped profile.
Step-by-Step C Purlin Roll Forming Process
| الخطوة | الوصف |
|---|---|
| 1. التفكيك | The metal coil is placed on the ديكويلر to feed the material. |
| 2. Leveling & Feeding | The sheet is straightened and guided into the forming stations. |
| 3. Punching & Cutting | The hydraulic system performs precise hole punching before forming. |
| 4. التشكيل بالدلفنة | The sheet passes through multiple roller stations, forming the C profile. |
| 5. Final Cutting & Output | The formed C purlin is cut to the required length and stacked. |
نصيحة محترف: أ fully automated C purlin roll forming machine يضمن higher accuracy and lower material waste.
Best Materials for C Purlins
Choosing the right material يضمن strength, durability, and corrosion resistance.
Comparison of Materials for C Purlins
| المواد | الخصائص | الأفضل لـ |
|---|---|---|
| Galvanized Steel (GI) | Corrosion-resistant, affordable | Roofing & wall framing |
| الفولاذ المدرفل على الساخن | High strength, durable | Heavy-duty structures |
| الفولاذ المدرفل على البارد | Smooth finish, precision forming | Industrial & commercial buildings |
| الفولاذ المقاوم للصدأ | Rust-proof, long-lasting | الظروف الجوية القاسية |
ماكينة صنواي manufactures roll forming machines compatible with all major C purlin materials.
Price Guide
تكلفة آلة تشكيل المدادة C depends on factors like automation level, production speed, and profile range.
Estimated Price Ranges
| نوع الماكينة | نطاق السعر (بالدولار الأمريكي) | سمات |
|---|---|---|
| Manual Machine | 15,000–15,000 – 15,000–40,000 | Manual adjustments, low-speed production |
| ماكينة نصف أوتوماتيكية | 40,000–40,000 – 40,000–90,000 | PLC-controlled, requires manual profile adjustments |
| ماكينة أوتوماتيكية بالكامل | 90,000–90,000 – 90,000–200,000 | CNC-controlled, quick profile switching |
| Quick Change Machine | 150,000–150,000 – 150,000–300,000 | High-speed, automatic profile adjustments |
Looking for a custom quotation? اتصل بصن واي ماشين اليوم!
Top C Purlin Roll Forming Machine Manufacturers
اختيار reliable manufacturer يضمن high-quality machines, long-term support, and global service.
Comparison of Leading C Purlin Roll Forming Machine Manufacturers
| الشركة المصنعة | البلد | التخصص | الميزات الرئيسية |
|---|---|---|---|
| WUXI SUNWAY MACHINERY CO.، LTD | الصين | ماكينات تشكيل المدادة C | Custom solutions, high-speed automation, IoT-enabled machines |
| Dreistern GmbH | ألمانيا | High-precision metal forming | CNC-controlled machines, strong R&D |
| ماكينات سامكو | كندا | Roll forming for construction | Custom engineering, automation |
| مجموعة برادبري | الولايات المتحدة الأمريكية | Heavy-duty roll forming systems | Robust machines, automation-focused |
الحكم: If you’re looking for a custom, high-speed, and cost-effective C purlin roll forming machine, ماكينة صنواي هو top choice for global buyers.
Common Problems & Solutions in C Purlin Roll Forming Machines
Even with high-quality C purlin roll forming machines, potential operational issues can arise due to roller misalignment, incorrect settings, or material inconsistencies. Identifying these problems early can help reduce downtime and improve production efficiency.
Troubleshooting Guide for C Purlin Roll Forming Machines
| الإصدار | Possible Cause | الحل |
|---|---|---|
| Profile Distortion or Bend in Purlins | Misaligned rollers, uneven pressure | Adjust roller settings and ensure even pressure distribution |
| Inconsistent Hole Punching | Faulty hydraulic system or misaligned punching dies | Inspect hydraulic pressure, realign punching dies for accuracy |
| Material Slip During Forming | Loose feeder rollers or incorrect tension settings | Adjust feeder rollers and ensure proper material tension |
| Excessive Vibration | Loose frame components or unstable foundation | Tighten bolts and ensure the machine is installed on a stable surface |
| Cutting Inaccuracy | Worn-out cutting blades or misaligned cutters | Replace dull blades and align cutters properly |
نصيحة محترف: عادي roller realignment و servo-driven adjustments can improve C purlin accuracy by 30%.
Future Trends in C Purlin Roll Forming Machines
With the rapid evolution of الصناعة 4.0, ماكينات تشكيل المدادة C are becoming faster, smarter, and more efficient. Manufacturers are integrating AI, IoT, and automation to enhance productivity and precision.
Key Innovations in C Purlin Roll Forming Machines for 2025
1. AI-Controlled Quality Inspection
- AI-powered sensors detect defects in real-time, reducing waste.
- يحسن product accuracy and minimizes rejection rates.
2. IoT & Smart Factory Integration
- Machines now feature cloud connectivityالسماح remote monitoring and predictive maintenance.
- التحسينات real-time data tracking and performance optimization.
3. Servo-Driven Roll Forming Technology
- يحسن speed control, accuracy, and energy efficiency.
- يقلل wear and tear on mechanical components.
4. Fully Automated Profile Adjustments
- Traditional machines require manual adjustments when switching C purlin sizes.
- Advanced systems use CNC-driven auto-adjustments, reducing downtime.
Upgrading to AI-powered roll forming machines can increase production efficiency by up to 50%!
Roll Forming vs. Press Braking for C Purlin Production
عند المقارنة roll forming and press braking, manufacturers must consider production speed, material waste, and cost efficiency.
Comparison Between Roll Forming and Press Braking for C Purlins
| الميزة | تشكيل لفة | الضغط على المكابح |
|---|---|---|
| Process Type | Continuous shaping | Individual bending per sheet |
| سرعة الإنتاج | Faster for long, continuous profiles | Slower for custom bends |
| النفايات المادية | Minimal waste | Higher material scrap |
| تكاليف الأدوات | Higher initial investment, lower long-term cost | Lower upfront cost, higher operational cost |
| الأفضل لـ | إنتاج صناعي كبير الحجم، إنتاج صناعي كبير الحجم | Custom, low-volume steel components |
الحكم: If you require high-speed, continuous production with minimal waste, C purlin roll forming is the better choice.
Automation in C Purlin Roll Forming Machines
Automation is revolutionizing the manufacturing process, making roll forming machines smarter, faster, and more efficient.
Key Benefits of Automated C Purlin Roll Forming Machines
| الميزة | المزايا |
|---|---|
| PLC & CNC Control Systems | Ensures precise measurements and minimizes human error |
| AI-Based Defect Detection | Identifies issues in real-time, reducing material waste |
| IoT & Remote Monitoring | Allows operators to track machine performance from anywhere |
| Automated Profile Changeover | Reduces downtime when switching between profiles |
| Energy-Efficient Servo Motors | Lowers operational costs and improves sustainability |
Fully automated C purlin roll forming machines from ماكينة صنواي improve production efficiency by up to 40%!
Essential Maintenance Tips for C Purlin Roll Forming Machines
Proper maintenance ensures longer machine lifespan and uninterrupted production.
Maintenance Checklist for C Purlin Roll Forming Machines
| المهمة | التردد | الغرض |
|---|---|---|
| Lubricate Rollers & Bearings | أسبوعياً | Prevents wear and tear |
| Check Roller Alignment | شهرياً | Ensures accurate profile production |
| Inspect Cutting Mechanism | ربع سنوي | Prevents defective cuts and misalignment |
| Clean Machine Components | يومياً | Removes dust and debris that can affect performance |
| Update Software & Calibration | Semi-Annually | Keeps automation functions optimized |
نصيحة محترف: Scheduled maintenance can extend machine lifespan by 50% و reduce failures by 70%.
FAQ: C Purlin Roll Forming Machines
1. How fast can a C purlin roll forming machine produce profiles?
High-speed models can produce up to 30 متراً في الدقيقة، اعتماداً على الملف الشخصي.
2. What purlin sizes can be produced?
Most machines can produce C purlins ranging from 80mm to 300mm in width.
3. How much does a C purlin roll forming machine cost?
The price ranges from 15,000forbasicmodels∗∗to∗∗15,000 for basic models** to **15,000forbasicmodels∗∗to∗∗300,000 for fully automated quick-change systems.
4. What materials can be used in C purlin roll forming machines?
تشمل المواد الشائعة ما يلي galvanized steel, hot-rolled steel, cold-rolled steel, and stainless steel.
5. Where can I buy a high-quality C purlin roll forming machine?
ل custom-built, high-speed C purlin roll forming machines, visit WUXI SUNWAY MACHINERY CO.، LTD.
الأفكار النهائية
الاستثمار في آلة تشكيل المدادة C is essential for efficient, high-quality steel structure production. Whether you need a standard or fully automated system, choosing a trusted manufacturer يضمن long-term reliability and profitability.
WUXI SUNWAY MACHINERY CO.، LTD هو leading global manufacturer من custom-built C purlin roll forming machinesتقدم advanced technology, expert support, and competitive pricing.
Want a custom C purlin roll forming machine? Contact us today!
