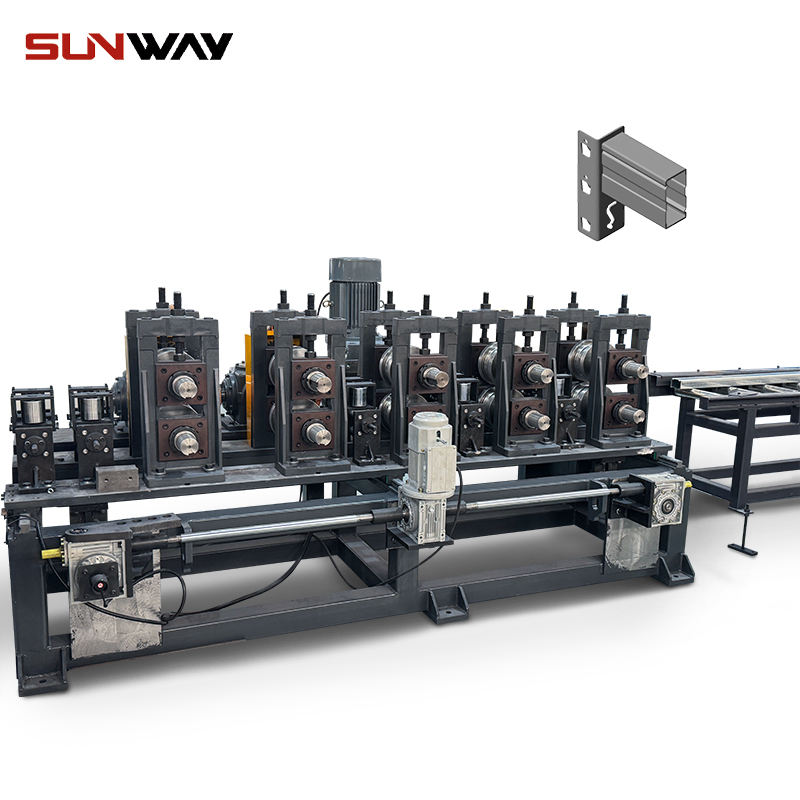

Box beam roll forming machine is developed to produce the beam which is fixed between the upright racks. It normally have two types: 1) both C beams are roll formed on a roll forming machine then seamed in a combined roll former to get a box beam; 2) one beam is formed on a roll forming machine directly to get a box beam.

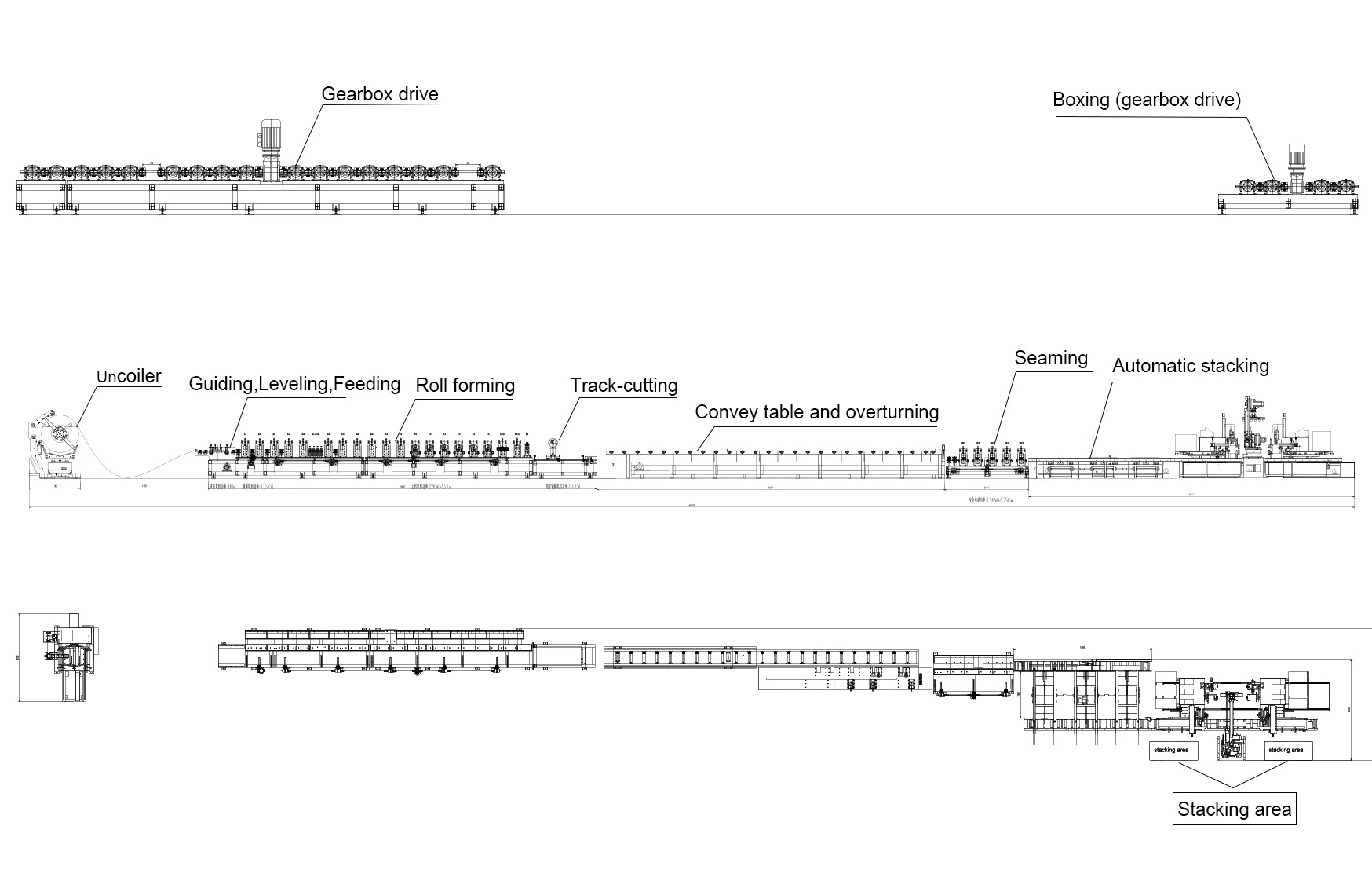

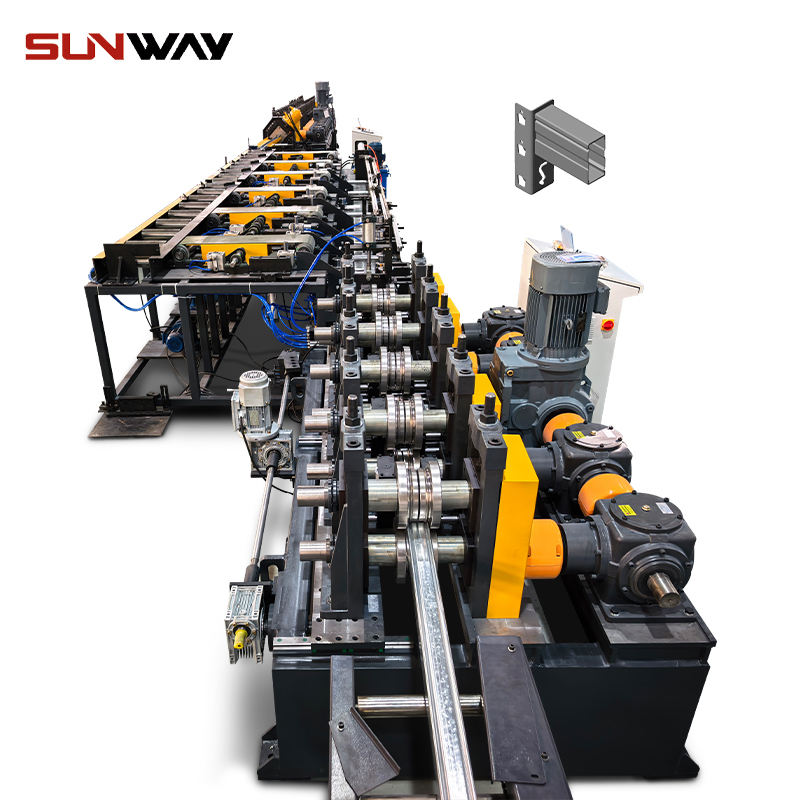

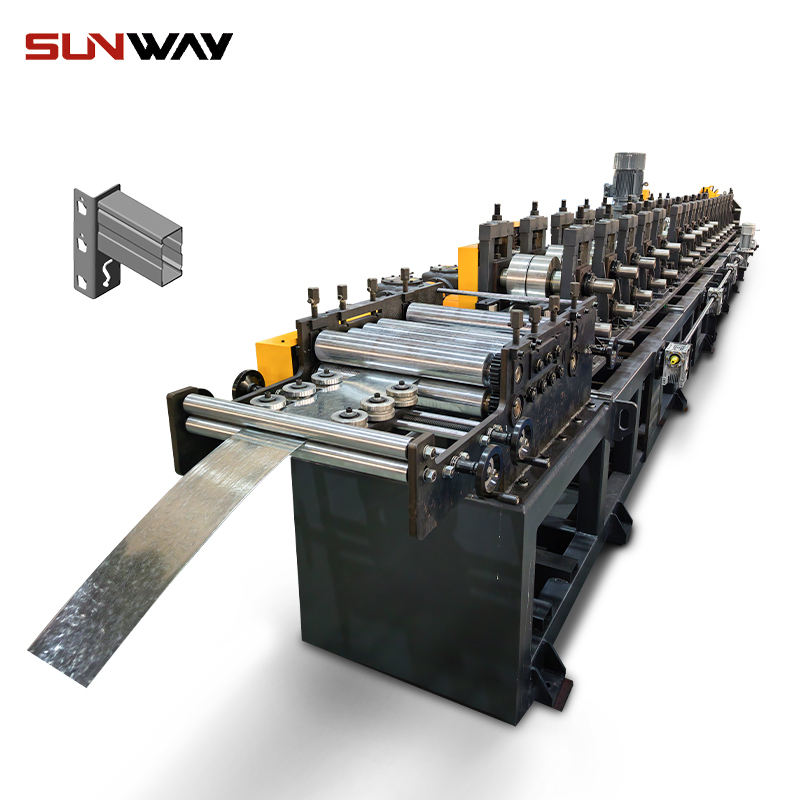

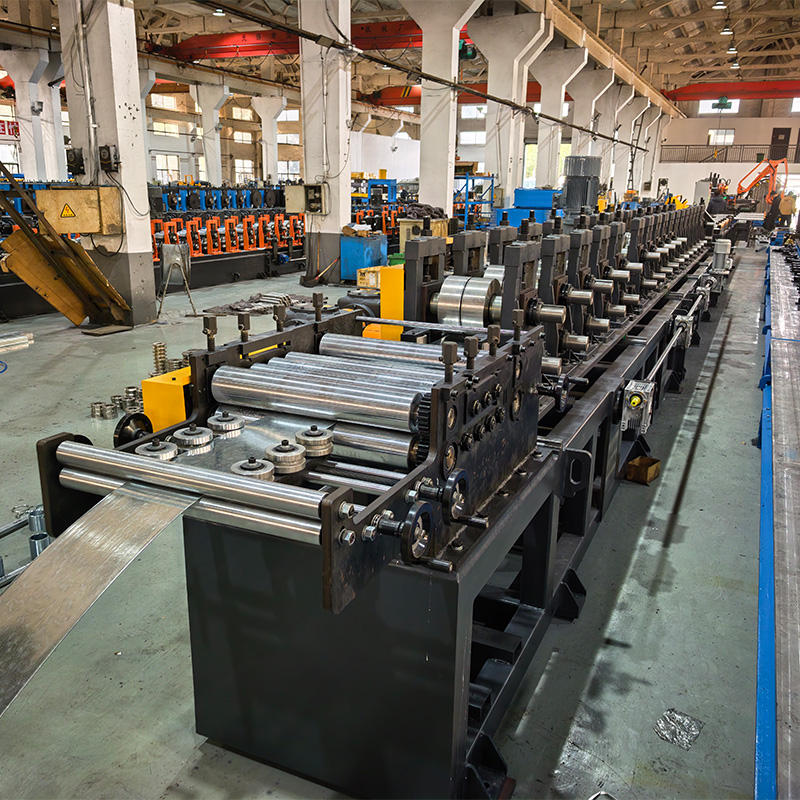

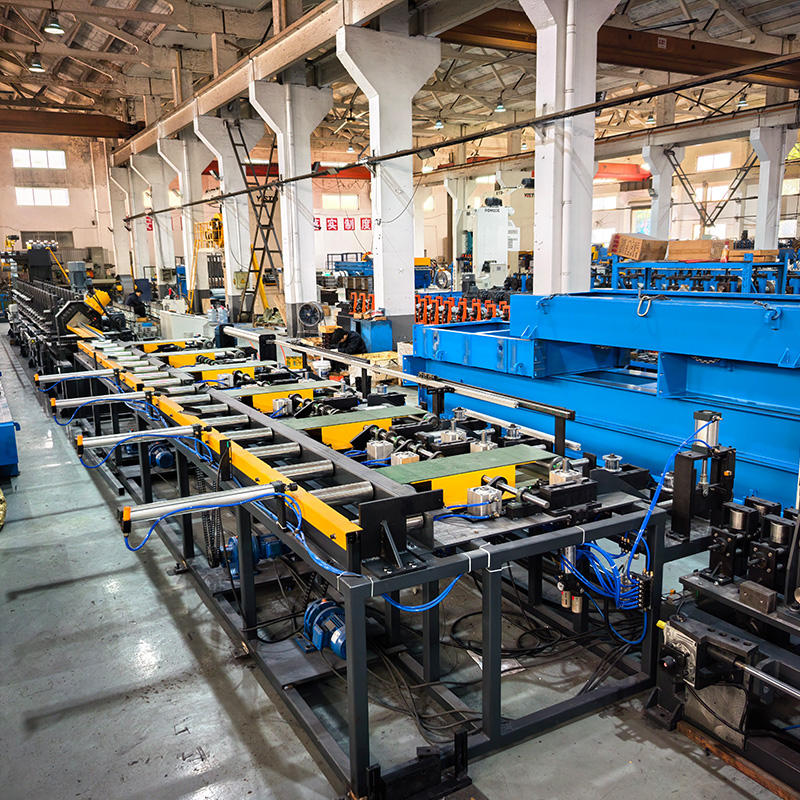

This full automatic box beam roll forming line is specially designed and equipped with auto welding, stacking which can reduce labor and increase production efficiency. Whole line flow chart is

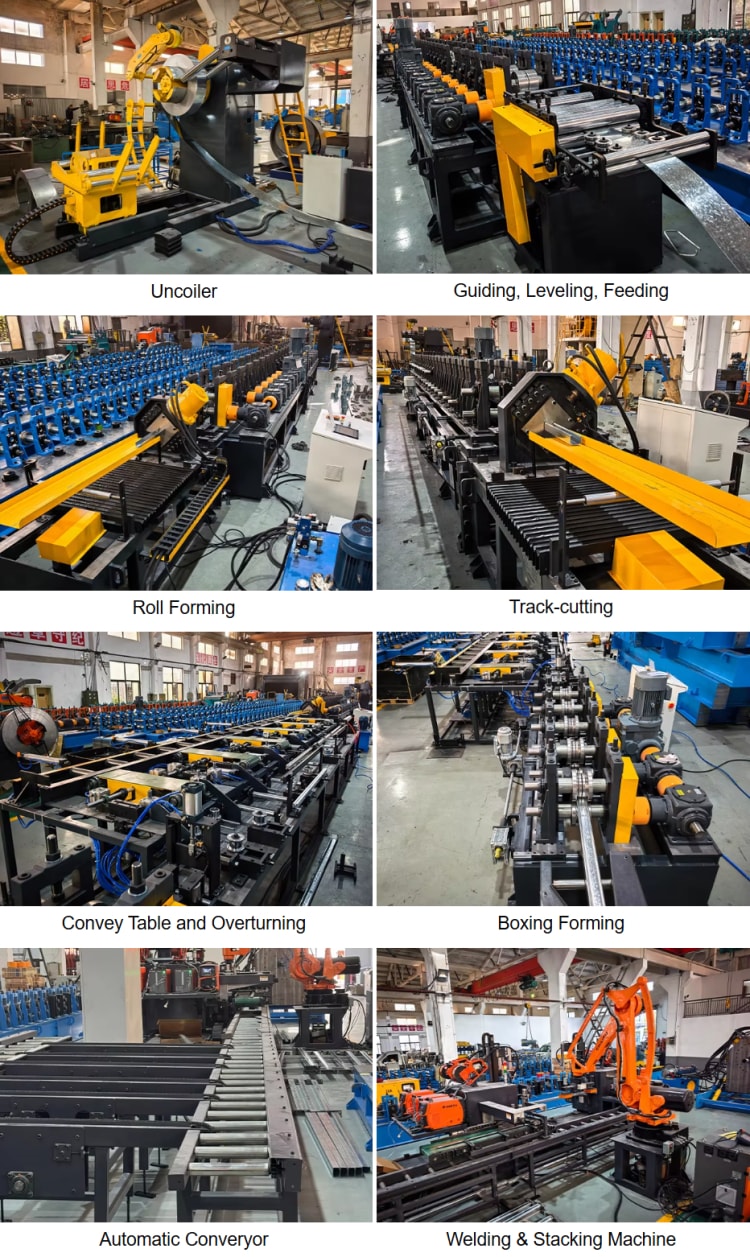

Electric uncoiling – Feed guiding and leveling – Roll Forming machine（gearbox drive system） – Fly cutting – Automatic conveying and turning table – Boxing machine（gearbox drive system） – Output table—Auto welding and stacking.

Our intelligent roll forming machine could make various sizes of beam with thickness 1.5-3.0mm. Uncoiling, feeding, roll forming, welding, cutting etc process can be automatically realized on one line. Meantime, we have the roll forming machine to make step beam, upright rack and shelf boards. All these are components of Pallet racking system.
在仓库托盘货架系统中，我们能制造更多机器，如阶梯梁辊压成型机、立柱货架辊压成型机和货架面板（箱板）辊压成型机等。

हम ग्राहकों की ड्राइंग, सहिष्णुता और बजट के अनुसार अलग-अलग समाधान करते हैं, पेशेवर एक-से-एक सेवा प्रदान करते हैं, जो आपकी सभी आवश्यकताओं के अनुकूल है। आप जो भी लाइन चुनते हैं, सनवे मशीनरी की गुणवत्ता सुनिश्चित करेगी कि आप पूरी तरह कार्यात्मक प्रोफाइल प्राप्त करें।

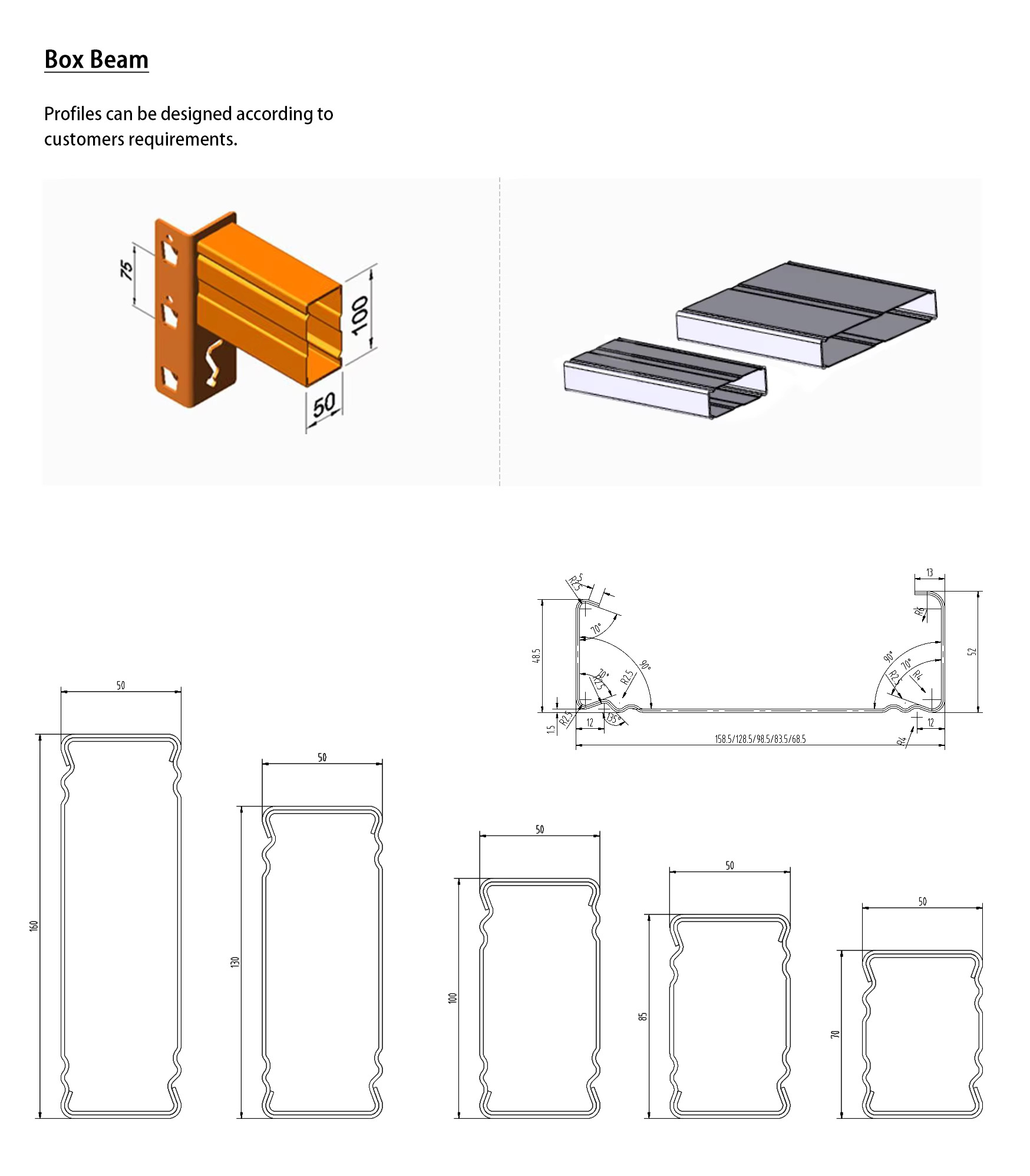

प्रोफ़ाइल चित्र

उत्पादन लाइन

उत्पाद विवरण

उत्पाद पैरामीटर

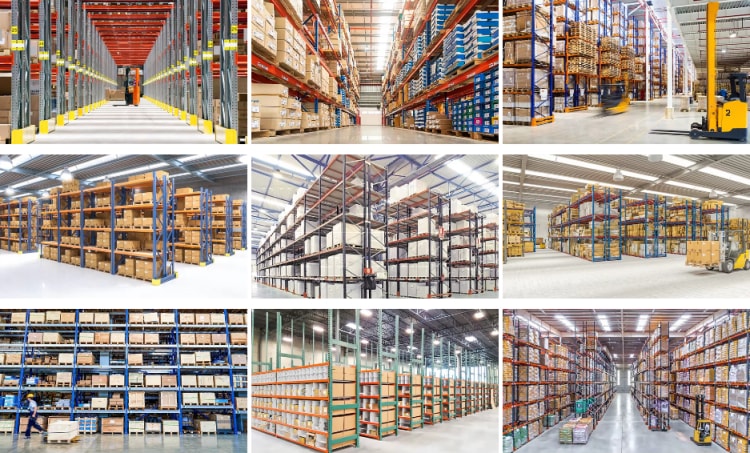

आवेदन
